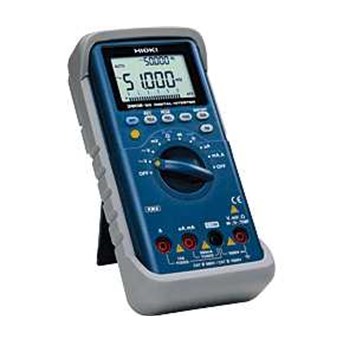

HIOKI 3802-50 DIGITAL HiTESTER

High Performance, Superior Functionality, and Advanced Safety : - CAT IV 600V with built-in protective circuitry for all functions - True RMS and Super High ?.025% accuracy (when measuring DC voltage) - Large 51000 maximum count display - Optional PC application package for transferring important measurement data and basic remote control Basic specifications : AC measurement : True RMS value measurement system Display : Data display : Primary display and secondary display: 4 1D2 characters Maximum count : [51000], [15000] 1000 mV/V range, [99999] Hz function, [9999] C function Bar graph : Scale display, 21 dot bar display. +/- polarity indication Measurement function/basic accuracy : DC voltage : 51.000mV to 1000.0V Basic accuracy : ?.03%rdg.?0dgt. AC voltage : 51.000mV to 1000.0V Basic accuracy : ?.6%rdg.?5dgt. AC+DC voltage : --- Basic accuracy : --- DC current : 510.00? to 10.000A Basic accuracy : ?.2%rdg.?5dgt AC current : 510.00? to 10.000A Basic accuracy : ?%rdg.?5dgt AC+DC current : --- Basic accuracy : --- Resistance : 510.00 to 51.000M? 510.00nS Basic accuracy : ?.08%rdg.?dgt Continuity : Buzzer sounds for less than 1000 count in each range Diode : Measured current: 1.00mA, open terminal voltage: 4.8V C (capacitance) : 9.999nF to 99.99mF Basic accuracy : ?.5%rdg.?dgt Frequency : 99.999Hz to 999.99kHz Frequency counter : --- Basic accuracy : ?.02%rdg.?dgt. (less than 20MHz) Temperature (k) : 200.0 to 1372.0? Temperature (J) : --- Duty ratio : 99.99% Pulse width : 510.00ms to 1999.9ms Pulse output : --- Additional Functions/General Specifications Additional functions : Autorange / Manual range / PC-compatibility (RS232C, USB) / Refresh hold / Trigger hold / Peak hold / Recording /4 ? 20mA (0 ? 20mA)% conversion display /dB decibel conversion display / Relative value (REL) display/ Terminal A improper connection warning / Display backlight / Auto power save / Battery life warning / Overload warning Sample rate 3: .75 times/s (V and, A measurement), 1.65 times/s (AC + DC measurement), 1.12 times/s (Hz and DUTY ratio measurement; [1Hz or more], pulse width measurement [1Hz or more]) , 7.5 times/s (?easurement) Max. input voltage : V terminal ... DC 1000V/AC 1000Vrms (sin) or 107V Hz Max. input current : A terminal ...Continuous to DC/AC 10A; up to DC/AC 20A within 30s ? ,mA terminal ... DC/AC 510mA Location / Temp. and humidity range for use : Indoors, up to an altitude of 2000m/ 0? to 50? /up to 80%rh (no condensation) Power supply (operating time) : 6F22(006P, 9V Manganese) battery) ? (20 hours) or 6LR61(9V Alkaline) battery ? (50 hours) Dimensions and mass : 90mm (3.54") W?92mm (7.56") H?7mm (1.46") D mm (excluding protrusions) 100mm (3.94") W?02mm (7.95") H?7mm (2.24") Dmm (including holster) /450g (15.9oz) (with battery) 680g (24.0oz) (with holster and battery) Applicable standards : Safety: EN61010-1:2001 EN61010-031:2002 Pollution class 2 Measurement category CAT III 1000V, CAT IV 600V Expected overvoltage 8000V EMC: EN61326:1997 + A1: 1998 + A2:2001 Warranty period : 3 years (excludes measurement accuracy) Accessories : Test Lead 3851-10 , holster (for main unit),battery (6LR61) 1 (for monitor in main unit)
